Rippa RL06
3,795 lb (1,721 kg)
Category
Operating Weight
Engine
MSRP

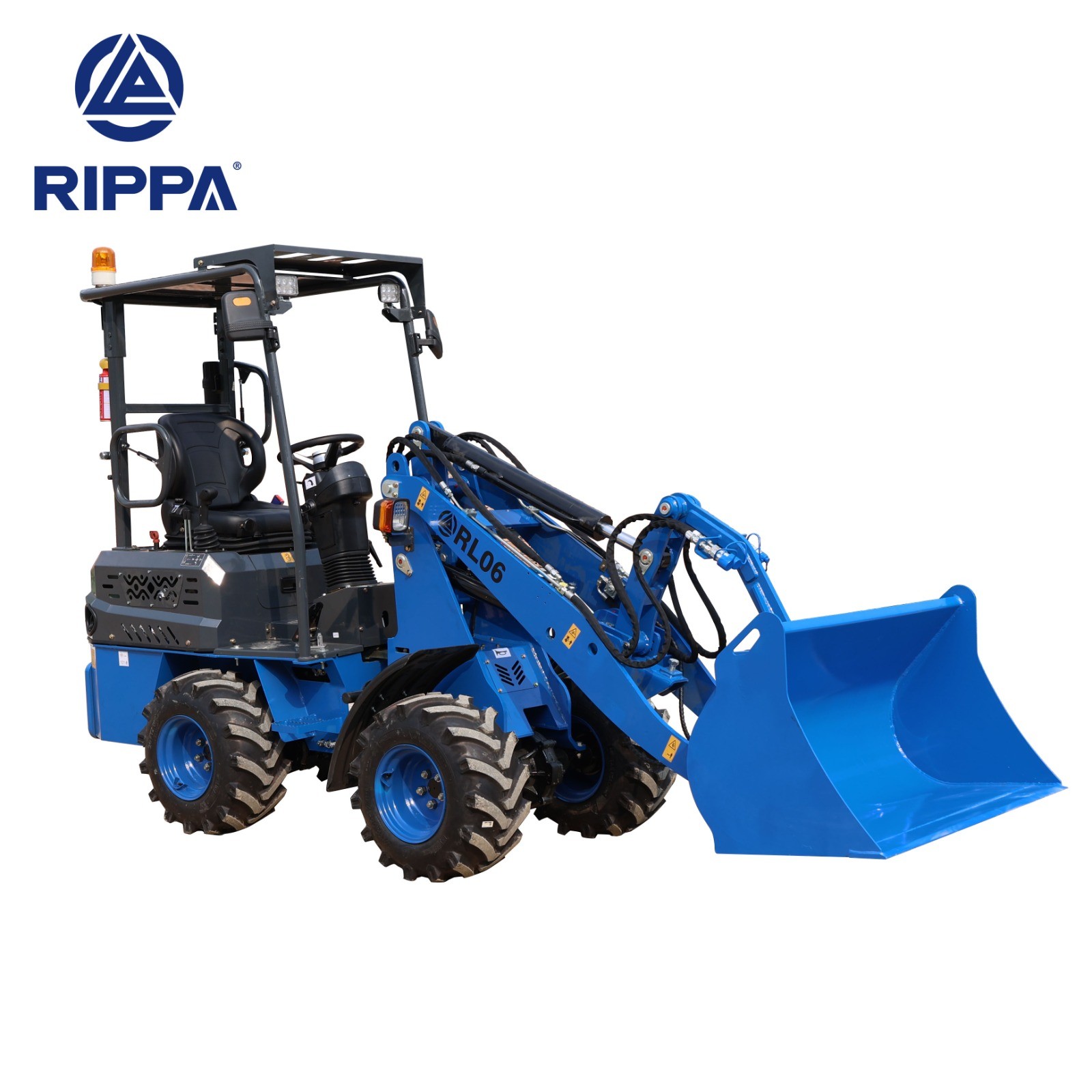

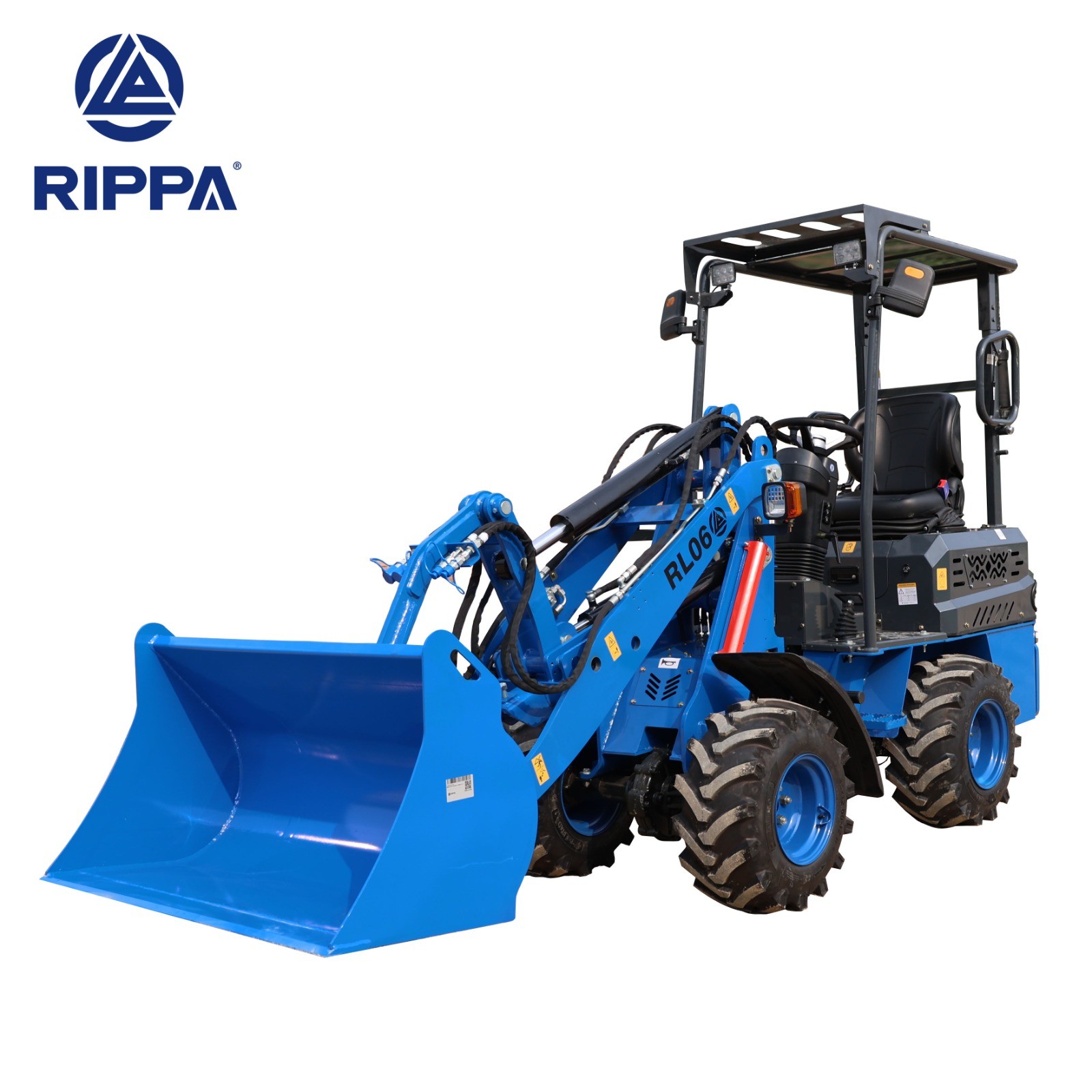

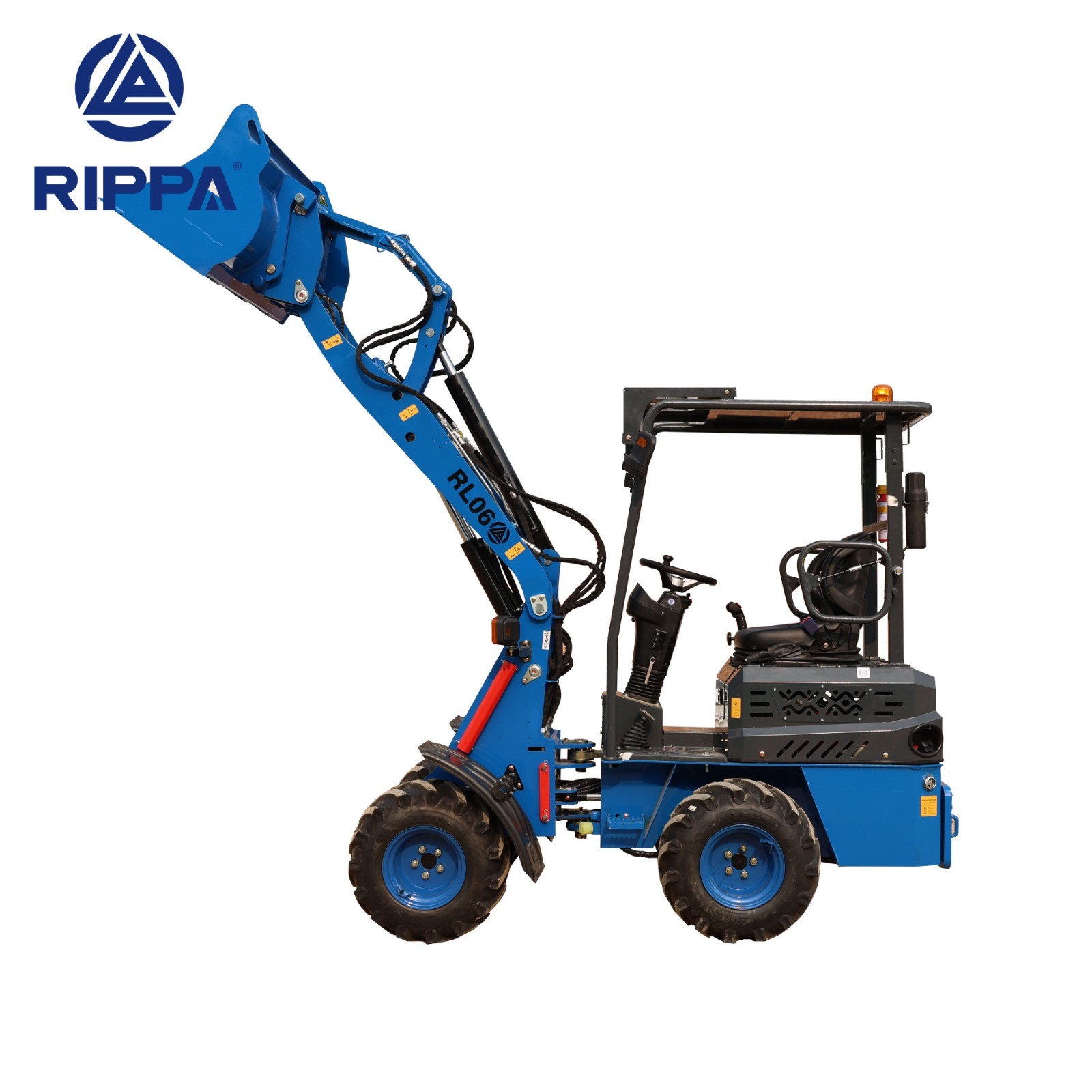

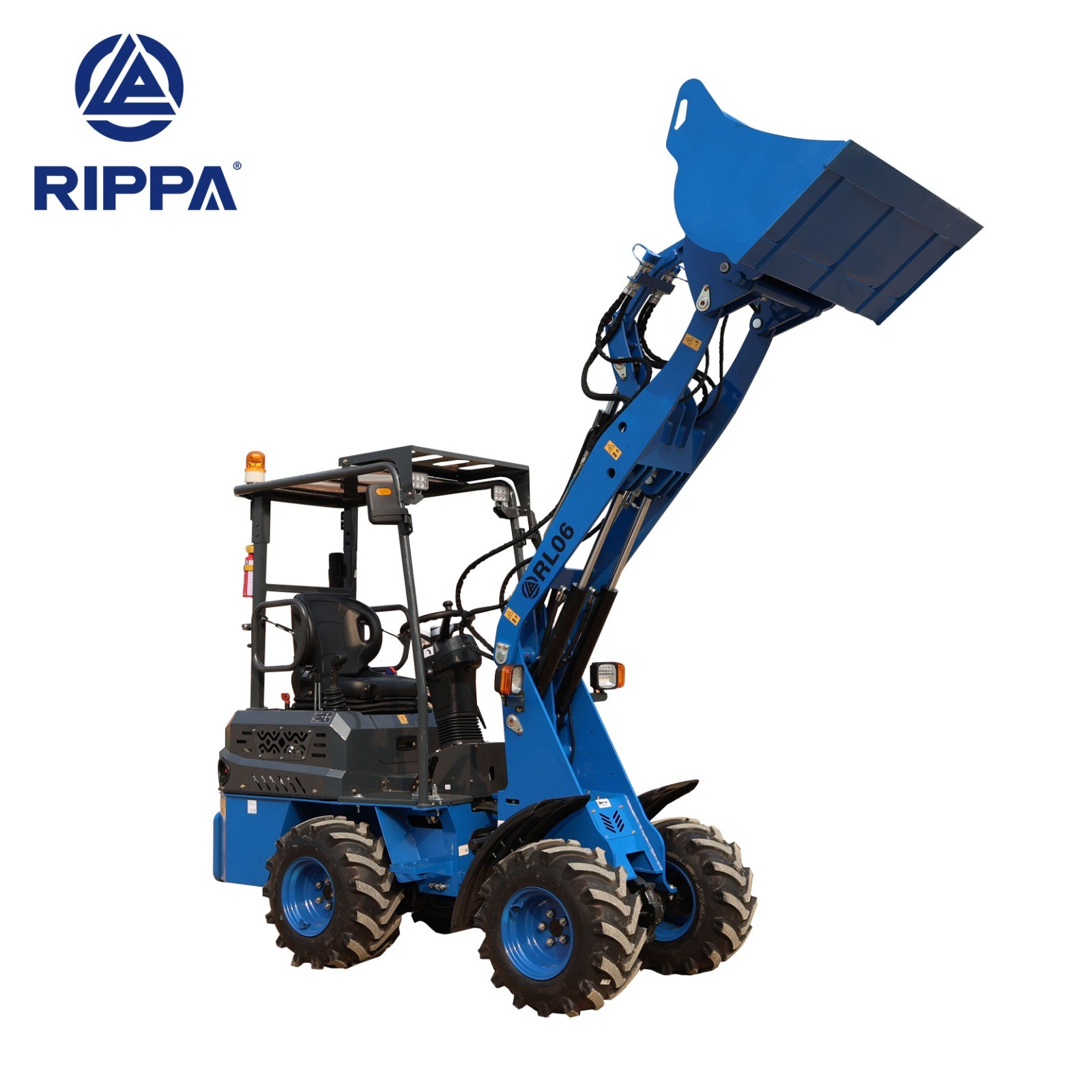

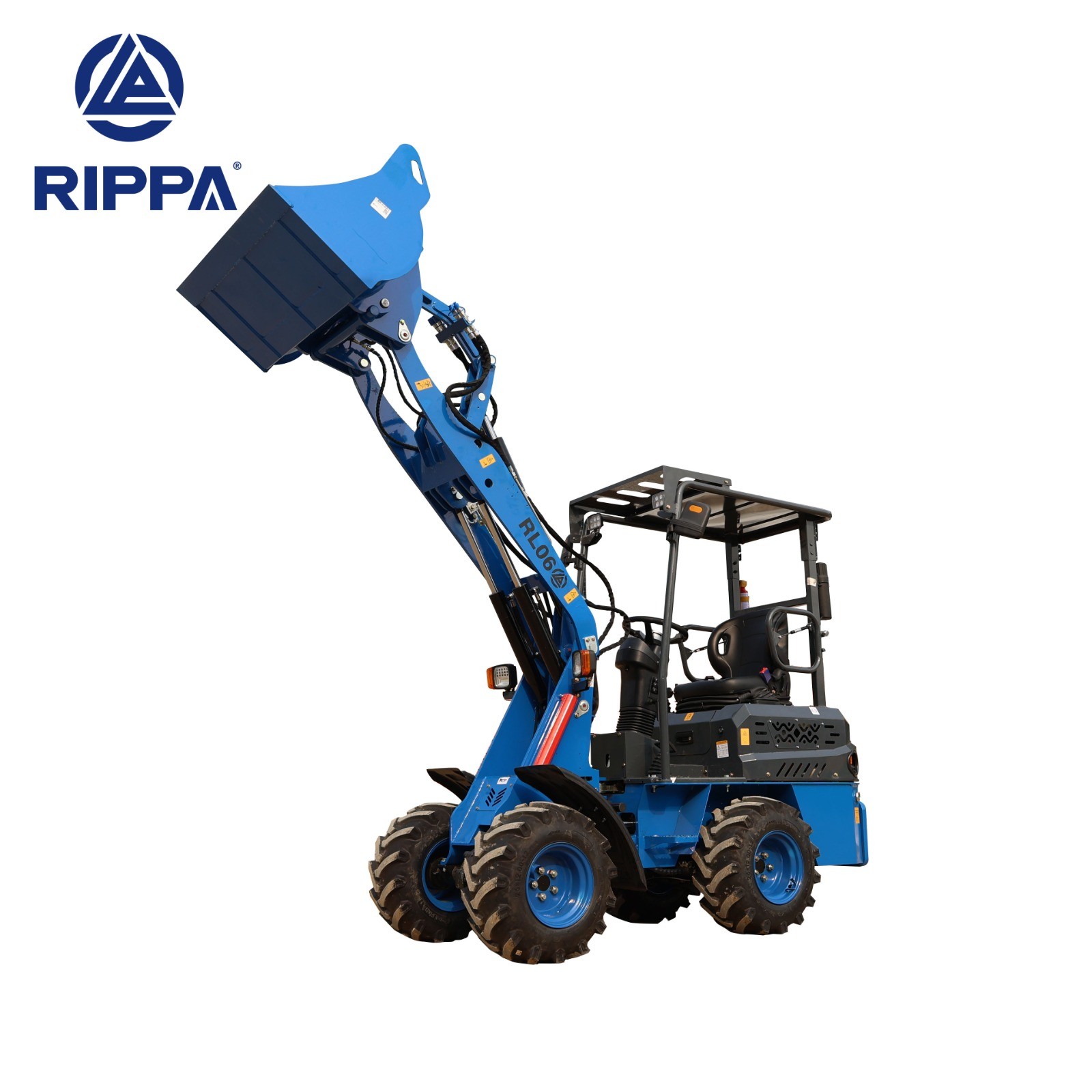

Rippa RL06 overview and introduction
Compact size. Kubota power. Telescopic reach. 4-in-1 versatility. The Rippa RD-06 wheeled loader is powered by a 25HP Kubota D1105 diesel engine. Comes equipped with a hydraulic 4-in-1 bucket for maximum jobsite versatility. Designed for landscaping, farming, snow removal, and material handling, it delivers strong lifting performance in a maneuverable articulated platform. Telescopic Arm Advantage Unlike standard compact loaders, the RL-06 features a telescopic boom that significantly increases loading height and reach. It easily loads dump trucks, trailers, and elevated platforms.
Applications:
Primary Features
Strong Lifting Performance • Rated safe load: 660 lb • Maximum load mass: 1320 lb • Rated bucket capacity: 8.1 ft³ • High-pressure hydraulic system (18 MPa rated, 20 MPa max)
Additional Features
The articulated steering system provides tight turning capability (94 in turning radius), making it ideal for: • Barns and farms • Residential job sites • Landscaping projects • Narrow access areas • Snow removal
Technical specifications
Kubota
Engine Brand
D1105
Engine Type
Diesel
Fuel Type
25 HP
Power
3,795 lb (1,721 kg)
Operating Weight
Closed Plunger Pump
Hydraulic Pump
Rubber
Tracks Type
